NETWORK Technology
GSM / CDMA / HSPA / EVDO / LTE
2G bands GSM 850 / 900 / 1800 / 1900
CDMA 800 / 1700 / 1900 / 2100
3G bands HSDPA 850 / 900 / 1700 / 1900 / 2100
CDMA2000 1xEV-DO
4G bands LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 29(700) - A1688
LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 29(700), 30(2300), 38(2600), 39(1900), 40(2300), 41(2500) - A1687
Speed HSPA 42.2/5.76 Mbps, LTE Cat6 300/50 Mbps, EV-DO Rev.A 3.1 Mbps
GPRS Yes
EDGE Yes
LAUNCH Announced 2015, September
Status Available. Released 2015, September

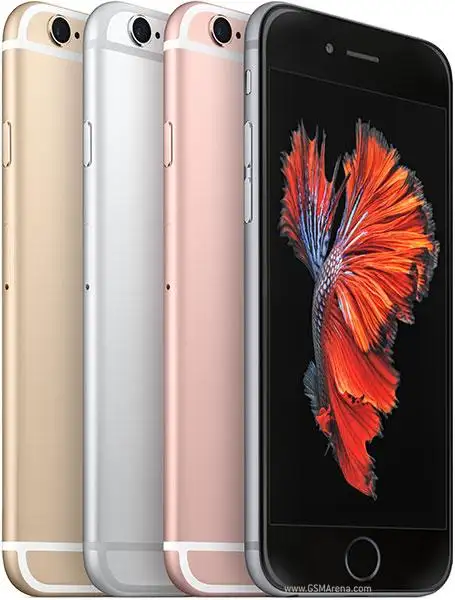

BODY Dimensions 138.3 x 67.1 x 7.1 mm (5.44 x 2.64 x 0.28 in)
Weight 143 g (5.04 oz)
SIM Nano-SIM
- Apple Pay (Visa, MasterCard, AMEX certified)
DISPLAY Type LED-backlit IPS LCD, capacitive touchscreen, 16M colors
Size 4.7 inches (~65.6% screen-to-body ratio)
Resolution 750 x 1334 pixels (~326 ppi pixel density)
Multitouch Yes
Protection Ion-strengthened glass, oleophobic coating
- 3D Touch display
- Display Zoom
PLATFORM OS iOS 9, upgradable to iOS 10.0.2
Chipset Apple A9
CPU Dual-core 1.84 GHz Twister
GPU PowerVR GT7600 (six-core graphics)
MEMORY Card slot No
Internal 64 GB, 2 GB RAM
CAMERA Primary 12 MP, f/2.2, 29mm, phase detection autofocus, dual-LED (dual tone) flash, check quality
Features 1/3" sensor size, 1.22 µm pixel size, geo-tagging, simultaneous 4K video and 8MP image recording, touch focus, face/smile detection, HDR (photo/panorama)
Video 2160p@30fps, 1080p@60fps,1080p@120fps, 720p@240fps, check quality
Secondary 5 MP, f/2.2, 31mm, 1080p@30fps, 720p@240fps, face detection, HDR, panorama
SOUND Alert types Vibration, proprietary ringtones
Loudspeaker Yes
3.5mm jack Yes
- 16-bit/44.1kHz audio
- Active noise cancellation with dedicated mic
COMMS WLAN Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot
Bluetooth v4.2, A2DP, LE
GPS Yes, with A-GPS, GLONASS
NFC Yes (Apple Pay only)
Radio No
USB v2.0, reversible connector
FEATURES Sensors Fingerprint, accelerometer, gyro, proximity, compass, barometer
Messaging iMessage, SMS (threaded view), MMS, Email, Push Email
Browser HTML5 (Safari)
Java No
- Siri natural language commands and dictation
- iCloud cloud service
- MP3/WAV/AAX+/AIFF/Apple Lossless player
- MP4/H.264 player
- Audio/video/photo editor
- Document editor
BATTERY Non-removable Li-Ion 1715 mAh battery (6.91 Wh)
Stand-by Up to 240 h (3G)
Talk time Up to 14 h (3G)
Music play Up to 50 h
